@series

Comma separated list of columns to use for data on the chart

Quick Reference

-- @series: sales, profit

Valid Values

List

A comma separated list of column names from the result set that should be displayed on the chart

Full Example

-- @chart: column
-- @title: Series - Basic chart
-- @subtitle: An example of explicitly defining the @series
-- @series: Sales
-- @formats: currency
SELECT
	TRUNC(date_closed, 'MONTH') as Month,
	sum(amount) as Sales,
    sum(Profit) as Profit
FROM sales
GROUP BY TRUNC(date_closed, 'MONTH')
ORDER BY TRUNC(date_closed, 'MONTH') ASC;

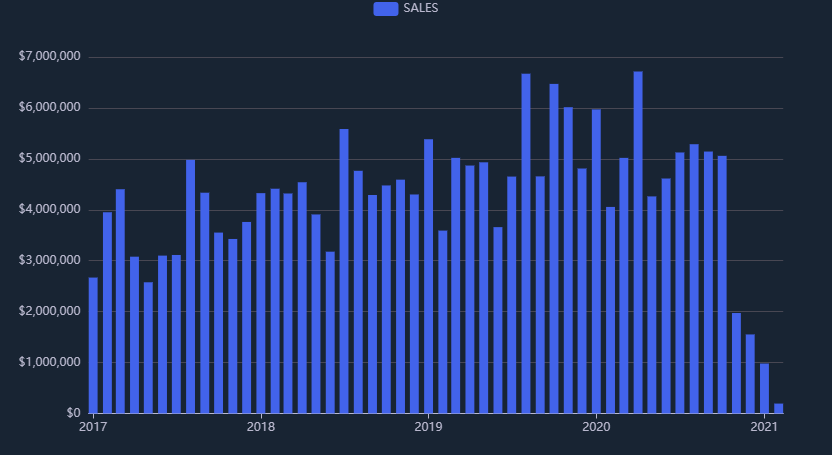

An example chart with an explicitly defined series. Columns not added are ignored

MONTH	SALES	PROFIT
January, 01 2017 00:00:00 +0000	2668855.0	801583.0
February, 01 2017 00:00:00 +0000	3951547.0	1117761.0
March, 01 2017 00:00:00 +0000	4403443.0	1224108.0
April, 01 2017 00:00:00 +0000	3079040.0	862533.0
May, 01 2017 00:00:00 +0000	2576305.0	631699.0
June, 01 2017 00:00:00 +0000	3100093.0	870893.0
July, 01 2017 00:00:00 +0000	3112476.0	871875.0
August, 01 2017 00:00:00 +0000	4980193.0	1321417.0

Use Cases

You use @series when you need to explicitly control which columns are going to be rendered on the chart. Typically this is necessary when your SQL returns more columns than you wish to display.
